Pitbull BigDog Hydraulic Stone Chiseler

Portable hydraulic stone chiseler, works on almost any stone type - including engineered stone! Capable of up to 3½ inch (8cm) thick laminated stone! With a pancake compressor!  get to 120psi  and you will have 5 tons of force!

Overview

As we looked around for a well designed portable stone chiseler, all we could find were air powered or manual units. So we tested the best available to us; we found that they could not handle engineered stone, or even some common natural stone types! We also noted that they tended to throw chunks of stone at the operator and those nearby when used on very hard stone. This was an unacceptable safety hazard! So we set our engineering team to work, and they gave us the PitBull™ Stone Chiseler. But we like options, so we had them go back to the drawing board, and give us a stone shear capable of handling even thicker stone. Not only did they do that, they did one better, and gave us the only shear on the market capable of producing scalloped edges: the PitBull BigDog™ Stone Chiseler.

The PitBull BigDog™ Hydraulic Stone Chiseler has a five+ ton rated hydraulic piston providing more than enough power to shear through the hardest of stones. We have tested it on several types of engineered stone, volcanic stone, granite, even marble!*

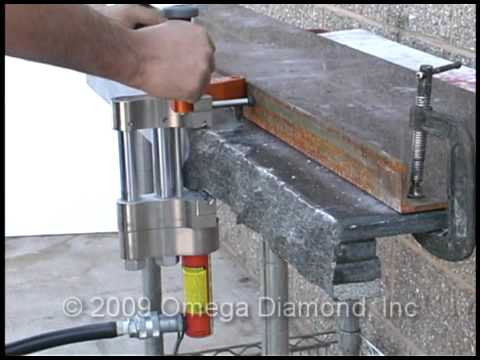

With the PitBull BigDog™ Hydraulic Stone Chiseler's 3 inch wide teeth you can create a perfect edge by overlapping the bites, or you can turn the machine at an angle and create a ragged "mountainous" look. To help create those perfect straight edges, you can clamp a section of angle aluminum on the slab (perhaps with our powerful suction clamps,) and use the guide pins to keep the PitBull BigDog™ Stone Chiseler in perfect alignment for every bite.

With the modular jaw system we designed for the BigDog Stone Chiseler your options have really opened up: For softer stones, such as marble and limestone, use the Soft-Stone jaw. This jaw is capable of even handling harder stones, so it provides the perfect general-purpose jaw. Use the 1½ inch jaws for really tough stone, such as 4cm slate and 8cm Absolute Black. Use the Scalloping jaw to create a really unique look. Scalloped chiseled edges produced as easy as a straight edge! Use the Reverse Scallop jaw (known as the "arc" jaw,) to scallop the inside of sink holes. You can also use this jaw after the Scalloping jaw to create the Wavy edge!

Operating Requirements

100psi (7 BAR) air pressure is required for the maximum 5 ton potential.  While the pump can operate at a minimum of 40psi (9 BAR), the PitBull Stone Chiseler will only be able to deliver 2 tons of force at that pressure.

Air compressor CFM (size of compressor) is not so important for the PitBull's operation.  The PA9 hydraulic pump is capable of operating a range of hydraulic cylinders, including large 100 ton units, however the PitBull Stone Chiseler only uses a small bore 5 ton piston. The air supply only needs enough volume to be able to keep the air pressure up at the rate you wish to work. Harder stone will need more tonnage (more psi) to chisel. The more CFM your air compressor puts out, the faster you will be able to cycle any air driven hydraulic pump resulting in faster work up to a limit.

Comparison with the Beaver Stone Chiselers

_{("Beaver Chisel" and the "Big Beaver Chisel" are a trademarks of the Stone Pro Equipment Co. Information about each product was accurate to information pulled from the manufacturer's claims and recommendations at the time of compilation.)}

_{*Price for replacement carbide only, each tooth. Prices vary for various teeth and holder styles.}

Notes

Product may show minor usage (dust, etc.) due to factory testing when shipped.

Product may not precisely match images. We are constantly working on each of our products to find better designs, and we ship each new machine with the best design we have at that time.

Click HERE for the manual to PA9: Air Hydraulic pump. To find the PDF click on the tab that says "downloads" on the right side of the page.
